100027522 | Telegärtner

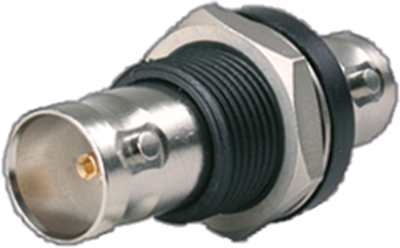

Coaxial adapter, 75 Ω, BNC socket to BNC socket, straight, 100027522
Unit Price (€ / pc.)
10.8885 € *
Available: 10 pcs.
Leadtime: 1 Week **
Total Price:
10.89 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8885 €
10 pcs.
9.5795 €
50 pcs.
8.9250 €
150 pcs.
8.5323 €
500 pcs.
8.1039 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial adapter, J01005A0008, Telegärtner
BNC-Jack to BNC-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (f)/BNC (f)
- Return Loss HDTV ≥ 30 dB / 3 GHz
- Mount. dim Z04
- Max. Frequency 4 GHz
Technical Data
- Design: straight
- Impedance: 75 Ω
Technical specifications
| Bauform | gerade | |
| Impedanz | 75 Ω | |
| Steckverbinder (Ausgang) | BNC-Buchse | |
| Steckverbinder | BNC-Buchse |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
