100023393 | Telegärtner

BNC socket 50 Ω, Belden 7806A, Belden 9907, HPF 195, KX-15, LMR-195, RG-58C/U, crimp/crimp, straight, 100023393

Order No.: 78F371
EAN: 4018359561277
MPN:
100023393
Series: BNC
Telegärtner

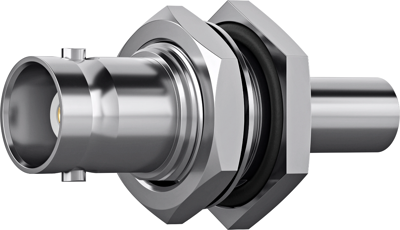

100023393 Telegärtner Coaxial Connectors Image 1

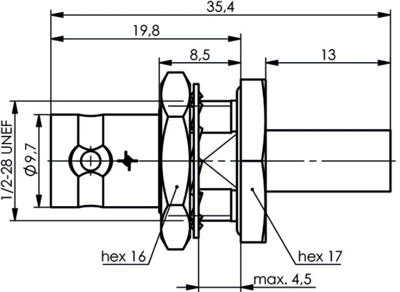

100023393 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.8425 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
10 pcs.
6.1523 €
25 pcs.
5.4264 €
50 pcs.
4.7600 €
*incl. VAT plus shipping costs
**Subject to prior sale

BNC socket, 100023393, Telegärtner

The BNC comprises the most commonly used coaxial connectors, which are used up to a frequency of 4 GHz. It has a bayonet lock and is available with 50 Ω characteristic impedance. This connector is used in signal, data and video transmission.

Technical specifications
Version panel socket
Design straight
Impedance 50 Ω
Cable Group Belden 7806A, Belden 9907, HPF 195, KX-15, LMR-195, RG-58C/U
Contact connection crimp/crimp
Contact material brass
Connector BNC
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
