100023694 | Telegärtner
TNC plug 50 Ω, RG-142B/U, crimp/crimp, straight, 100023694
Unit Price (€ / pc.)
3.2606 € *
Available: 0 pcs.
Leadtime: 1 Week **

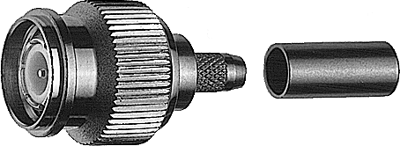

Coaxial connector, J01010A0000, Telegärtner
TNC Straight Plug Crimp RG-142B/U crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 142B/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-142B/U | |
| Kontaktanschluss | Crimp/Crimp | |
| Kontaktmaterial | Messing | |
| Steckverbinder | TNC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
