100023697 | Telegärtner
TNC plug 50 Ω, RG-223/U, RG-400/U, RG-142B/U, solder/crimp connection, angled, 100023697
Unit Price (€ / pc.)
8.3181 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
8.32 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3181 €
10 pcs.
7.7469 €
50 pcs.
7.1162 €
100 pcs.
6.4855 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01010A0006, Telegärtner

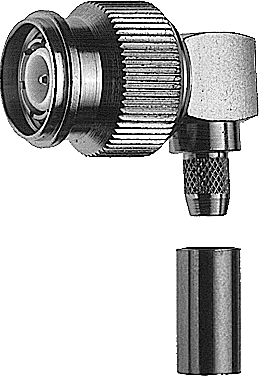

TNC Angle Plug Crimp G5 (RG-223/U), RG-142B/U solder/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 223
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | abgewinkelt | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-223/U, RG-400/U, RG-142B/U | |
| Kontaktanschluss | Löt-/Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Steckverbinder | TNC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
