100023700 | Telegärtner
TNC plug 50 Ω, RG-58C/U, crimp connection, angled, 100023700
Unit Price (€ / pc.)
27.0130 € *
Available: 10 pcs.
Leadtime: 1 Week **
Total Price:
27.01 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0130 €
10 pcs.
23.7881 €
50 pcs.
22.1459 €
150 pcs.
21.1820 €
500 pcs.
20.1110 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01010A0019, Telegärtner

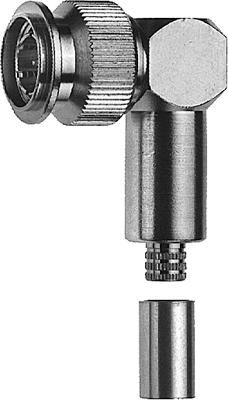

TNC Angle Plug Crimp G1 (RG-58C/U) crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 58C/U
- Connection type: Crimp/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | abgewinkelt | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-58C/U | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Steckverbinder | TNC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
