100023713 | Telegärtner

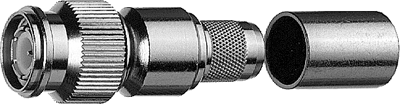

TNC plug 50 Ω, RG-213/U, crimp/crimp, straight, 100023713
Unit Price (€ / pc.)
16.0293 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
16.03 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0293 €
10 pcs.
14.1134 €
50 pcs.
13.1495 €
150 pcs.
12.5664 €
500 pcs.
11.9357 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01010A0051, Telegärtner
TNC Straight Plug Crimp RG-213/U, crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 213/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-213/U | |
| Contact connection | crimp/crimp | |
| Contact material | brass | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
