100023731 | Telegärtner

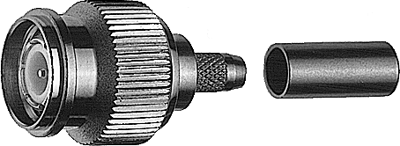

TNC plug 50 Ω, RG-223/U, RG-400/U, crimp connection, straight, 100023731
Unit Price (€ / pc.)
4.7838 € *
Available: 124 pcs.
Leadtime: 5 Weeks **
Total Price:
4.78 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7838 €
10 pcs.
4.2126 €
100 pcs.
3.6890 €
250 pcs.
3.5462 €
1000 pcs.
3.3201 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01010A2256, Telegärtner
TNC Straight Plug Crimp G5 (RG-223/U) crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 223/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-223/U, RG-400/U | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Steckverbinder | TNC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
