100023733 | Telegärtner
TNC plug 50 Ω, KX-21A, RG-178B/U, RG-196A/U, straight, 100023733
Unit Price (€ / pc.)
10.1864 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01010A2610, Telegärtner

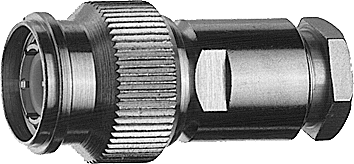

TNC Straight Plug G3 (RG-178B/U) IP 67
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: TNC
- Cable group: RG 178B/U
- Connection type: other
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | KX-21A, RG-178B/U, RG-196A/U | |
| Kontaktanschluss | sonstige | |
| Kontaktmaterial | Messing | |
| Steckverbinder | TNC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
