100023748 | Telegärtner
R TNC plug 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, crimp/crimp, straight, 100023748
Unit Price (€ / pc.)
8.0682 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01010R0001, Telegärtner

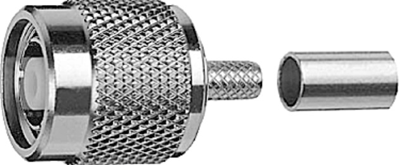

R-TNC Straight Plug G7 (RG-316/U), crimp/crimp
This product is supplied with a threaded coupling, vibration resistant. The impedance is controlled at 50 Ω.
Technical Data
- Design: Plug
- Connector type: R-TNC
- Cable group: RG 316/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A | |
| Contact connection | crimp/crimp | |
| Contact material | brass | |
| Connector | R TNC |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
