100023759 | Telegärtner

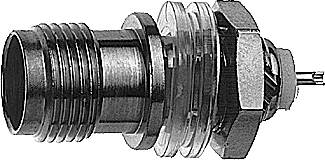

TNC socket 50 Ω, solder connection, straight, 100023759
Unit Price (€ / pc.)
7.3185 € *
Available: 86 pcs.
Leadtime: On Request **
Coaxial connector, J01011A0013, Telegärtner
TNC Bulkhead Socket insulated mounting
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: other
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: true
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | other | |
| Contact connection | solder connection | |
| Contact material | brass | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
