100023769 | Telegärtner

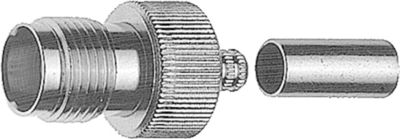

TNC socket 50 Ω, 2.7/7.25, solder/crimp connection, straight, 100023769
Unit Price (€ / pc.)
25.6088 € *
Available: 2 pcs.
Leadtime: 2 Weeks **
Total Price:
25.61 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6088 €
10 pcs.
23.5620 €
25 pcs.
21.6699 €
50 pcs.
19.7183 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01011A0055, Telegärtner
TNC Cable Jack, crimp, G37 (9913 Belden), G55 (2.7/7.25 Flex), solder/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: 2.7/7.25
- Connection type: Solder/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | 2.7/7.25 | |
| Contact connection | solder/crimp connection | |
| Contact material | brass | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
