100023785 | Telegärtner

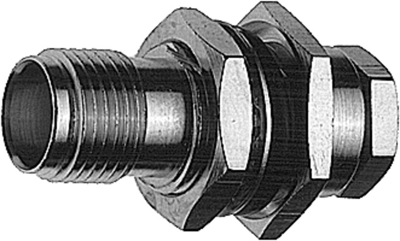

TNC socket 50 Ω, RG-58C/U, straight, 100023785
Unit Price (€ / pc.)
12.8044 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.80 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8044 €
10 pcs.
11.2574 €
50 pcs.
10.4958 €
150 pcs.
10.0198 €
500 pcs.
9.5200 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01011A2223, Telegärtner
TNC Bulkhead Jack G1 (RG-58C/U), G5 (RG-223/U), RG-141A/U, RG-142B/U MIL clamp IP 67
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: RG 58C/U
- Connection type: other
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-58C/U | |
| Contact connection | other | |
| Contact material | brass | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Dodecamethylcyclohexasiloxane, Lead |
