100023895 | Telegärtner
N plug 50 Ω, RG-223/U, RG-400/U, RG-142B/U, solder/crimp connection, angled, 100023895
Unit Price (€ / pc.)
12.1856 € *
Available: 2 pcs.
Next delivery: 20 pcs. on 2025-01-15
Leadtime: 9 Weeks **
Total Price:
12.19 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1856 €
10 pcs.
10.7338 €
50 pcs.
9.9841 €
150 pcs.
9.5557 €
500 pcs.
9.0678 €
*incl. VAT plus shipping costs
**Subject to prior sale

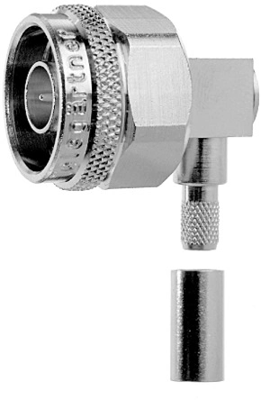

Coaxial connector, J01020A0036, Telegärtner
N Angle Plug Crimp G5 (RG-223/U), RG-142B/U, solder/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 223/U, RG 142B/U
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | RG-223/U, RG-400/U, RG-142B/U | |
| Contact connection | solder/crimp connection | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
