100023899 | Telegärtner

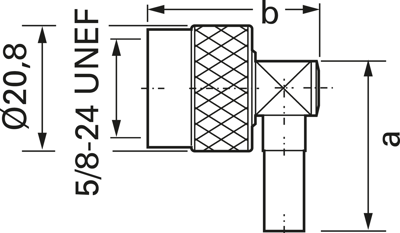

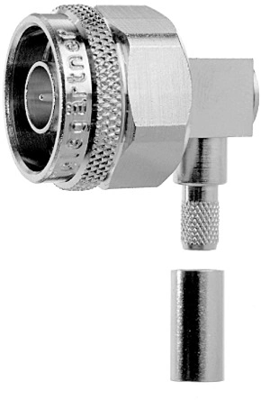

N plug 50 Ω, RG-213/U, solder/crimp connection, angled, 100023899
Unit Price (€ / pc.)
16.5648 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01020A0046, Telegärtner
N Angle Plug Crimp G42 (2.7/7.1), RG-213/U, AA5886, solder/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 213/U
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | RG-213/U | |
| Design | abgewinkelt | |
| Contact material | Messing | |
| Contact connection | Löt-/Crimpanschluss | |
| Version | Stecker |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
