100023911 | Telegärtner
N plug 50 Ω, RG-223/U, RG-400/U, crimp/crimp, straight, 100023911
Unit Price (€ / pc.)
9.1630 € *
Available: 74 pcs.
Leadtime: 2 Weeks **
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1630 €
10 pcs.
8.0682 €
100 pcs.
7.0686 €
250 pcs.
6.7949 €
1000 pcs.
6.3427 €
*incl. VAT plus shipping costs
**Subject to prior sale

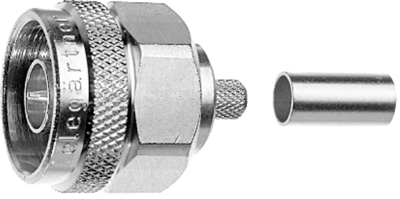

Coaxial connector, J01020A0113, Telegärtner
N Straight Plug Crimp G5 (RG-223/U), crimp/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 223/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-223/U, RG-400/U | |
| Contact connection | crimp/crimp | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
