100023916 | Telegärtner

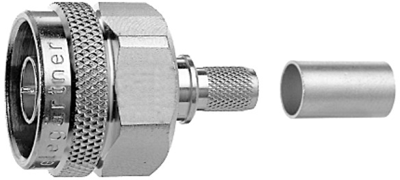

N plug 50 Ω, 2.7/7.25, crimp/crimp, straight, 100023916
Unit Price (€ / pc.)
16.0412 € *
Available: 15 pcs.
Leadtime: On Request **
Total Price:
16.04 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0412 €
10 pcs.
14.1253 €
50 pcs.
13.1614 €
150 pcs.
12.5664 €
500 pcs.
11.9476 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01020A0127, Telegärtner
N Straight Plug Crimp G37 (2.7/7.25) crimp/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: 2.7/7.25
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | 2.7/7.25 | |
| Contact connection | crimp/crimp | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
