100023922 | Telegärtner

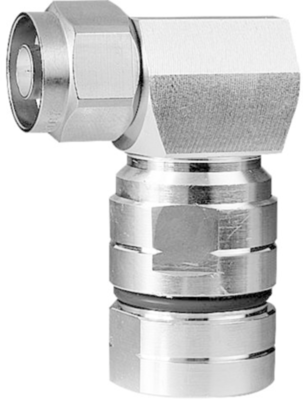

N plug 50 Ω, 1/2'', clamp/clamp, angled, 100023922
Unit Price (€ / pc.)
69.9482 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01020A0147, Telegärtner
N Angle Plug G23 (1/2" Flex) SIMFix Pro
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 59
- Connection type: Clamp/Clamp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | 1/2'' | |
| Contact connection | clamp/clamp | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
