100024033 | Telegärtner

N socket 50 Ω, UT-250, solder/solder, straight, 100024033

Order No.: 80F1330
EAN: 4018359385224
MPN:
100024033
J01021A0202
Series: N
Telegärtner
100024033 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
27.6199 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.6199 €

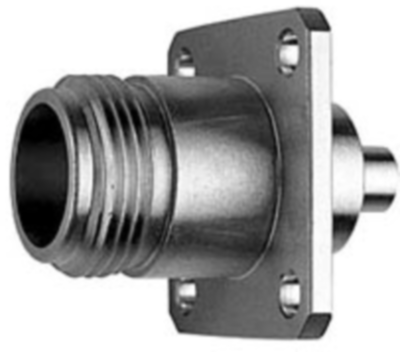

Coaxial connector, J01021A0202, Telegärtner

N Panel Jack G9 (UT-250) IP 67

This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.

Technical Data

  • Design: Jack
  • Connector type: N
  • Cable group: UT-250
  • Connection type: Solder/Solder
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version socket
Design straight
Impedance 50 Ω
Cable Group UT-250
Contact connection solder/solder
Contact material brass
Connector N
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
