100024053 | Telegärtner

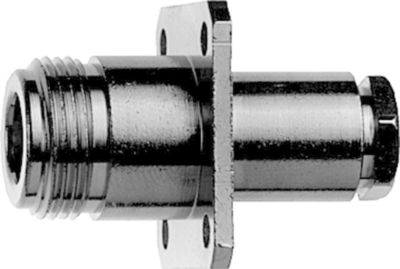

N socket 50 Ω, 1.5/3.8, solder/clamp, straight, 100024053
Unit Price (€ / pc.)
24.4426 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01021B0050, Telegärtner
N Panel Jack G30 (1.5/3.8), G54 (1.5/3.8 FLEX) IP 67
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: N
- Cable group: 1.5/3.8
- Connection type: Solder/Clamp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | 1.5/3.8 | |
| Contact connection | solder/clamp | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
