100024080 | Telegärtner
N socket 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/clamp, straight, 100024080
Unit Price (€ / pc.)
17.2788 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01021H0019, Telegärtner

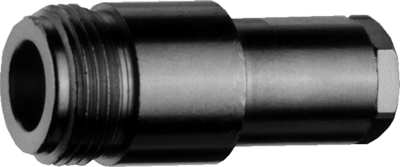

N Straight Jack G7 (RG-316/U) IP 67
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: N
- Cable group: RG 316/U
- Connection type: Solder/Clamp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Buchse | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A | |
| Kontaktanschluss | Löt/Klemme | |
| Kontaktmaterial | Messing | |
| Steckverbinder | N |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
