100024325 | Telegärtner

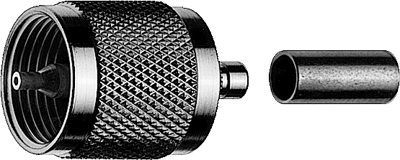

UHF plug 50 Ω, RG-214/U, crimp connection, straight, 100024325
Unit Price (€ / pc.)
7.2352 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01040A0010, Telegärtner
UHF Straight Plug Crimp RG-214/U crimp/crimp
This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.
Technical Data
- Design: Plug
- Connector type: UHF
- Cable group: RG 214/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-214/U | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Connector | UHF |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
