100024333 | Telegärtner

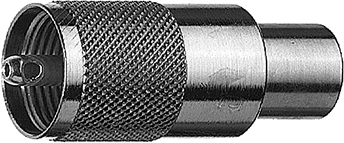

UHF plug 50 Ω, RG-58C/U, solder/solder, straight, 100024333
Unit Price (€ / pc.)
6.2713 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01040A0604, Telegärtner

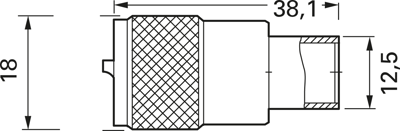

UHF Straight Plug G1 (RG-58C/U), G2 (RG-59B/U) Insulator: POM
This product is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Applications for the UHF connector is for low-frequency communication equipment.
Technical Data
- Design: Plug
- Connector type: UHF
- Cable group: RG 58C/U
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: true
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-58C/U | |
| Kontaktanschluss | Löt/Löt | |
| Kontaktmaterial | Messing | |
| Steckverbinder | UHF |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
