100024389 | Telegärtner
7/16 plug 50 Ω, RFF 1/2''-50, FSJA-50B, HFSC 12D, clamp/clamp, angled, 100024389
Unit Price (€ / pc.)
74.1251 € *
Available: 0 pcs.
Leadtime: On Request **

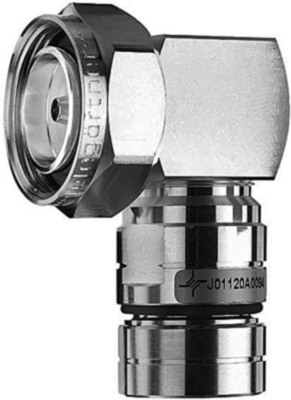

Coaxial connector, J01120A0094, Telegärtner
7-16 Angle Plug G23 (1/2'' Flex) SIMFix Pro IP 68
This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.
Technical Data
- Design: Plug
- Connector type: 7/16
- Cable group: RG 59
- Connection type: Clamp/Clamp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | abgewinkelt | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RFF 1/2''-50, FSJA-50B, HFSC 12D | |
| Kontaktanschluss | Klemme/Klemme | |
| Kontaktmaterial | Kupferlegierung | |
| Steckverbinder | 7/16 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
