100024418 | Telegärtner

7/16 plug 50 Ω, K-07252 D-01, RG-214/U, RG-393/U, solder/crimp connection, angled, 100024418

Order No.: 80F1476
EAN: 4018359352813
MPN:
100024418
J01120C0010
Series: COAX 7/16
Telegärtner
100024418 Telegärtner Coaxial Connectors

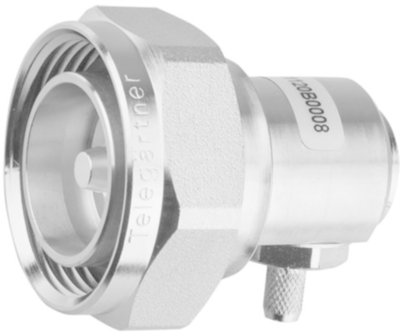

Image may differ
Unit Price (€ / pc.)
36.3783 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
36.3783 €

Coaxial connector, J01120C0010, Telegärtner

7-16 Angle Plug Crimp K 07252 D-01, RG-214/U, RG-393/U

This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.

Technical Data

  • Design: Plug
  • Connector type: 7/16
  • Cable group: K 07252 D-01
  • Connection type: Solder/Crimp
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design angled
Impedance 50 Ω
Cable Group K-07252 D-01, RG-214/U, RG-393/U
Contact connection solder/crimp connection
Contact material brass
Connector 7/16
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
