100024454 | Telegärtner
7/16 socket 50 Ω, RG-214/U, crimp/crimp, straight, 100024454
Unit Price (€ / pc.)
51.5746 € *
Available: 0 pcs.
Leadtime: On Request **

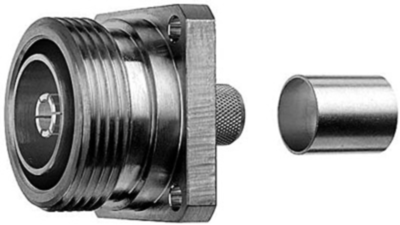

Coaxial connector, J01121A0146, Telegärtner
7-16 Panel Jack Crimp RG-214/U crimp/crimp
This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.Technical Data
- Design: Jack
- Connector type: 7/16
- Cable group: RG 214/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Buchse | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | RG-214/U | |
| Kontaktanschluss | Crimp/Crimp | |
| Kontaktmaterial | Beryllium-Kupfer | |
| Steckverbinder | 7/16 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
