100024482 | Telegärtner

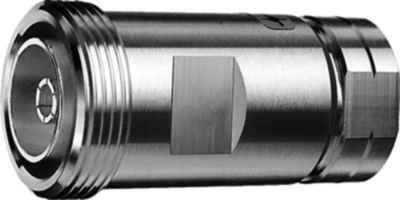

7/16 socket 50 Ω, 1/2'', clamp/clamp, straight, 100024482
Unit Price (€ / pc.)
49.5873 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01121B0120, Telegärtner
7-16 Straight Jack G23 (1/2'' Flex) SIMFix
This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.
Technical Data
- Design: Jack
- Connector type: 7/16
- Cable group: RG 59
- Connection type: Clamp/Clamp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Ausführung | Buchse | |
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Kabelgruppe | 1/2'' | |
| Kontaktanschluss | Klemme/Klemme | |
| Kontaktmaterial | Kupferlegierung | |
| Steckverbinder | 7/16 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
