100024656 | Telegärtner
R-SMA plug 50 Ω, RG-58C/U, solder/crimp connection, angled, 100024656
Unit Price (€ / pc.)
12.7568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.76 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7568 €
10 pcs.
11.2098 €
50 pcs.
10.4601 €
150 pcs.
9.9841 €
500 pcs.
9.4843 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01150R0021, Telegärtner

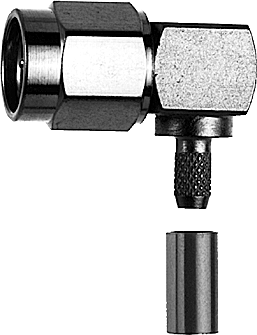

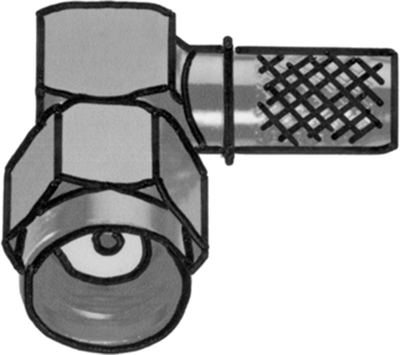

R-SMA angle plug G1 (RG-58C/U) solder/crimp
This product is supplied with a threaded coupling, vibration resistant and can be used up to frequencies of over 6 GHz (depending on type). The impedance is controlled at 50 Ω.
Technical Data
- Design: Plug
- Connector type: R-SMA
- Cable group: RG 58C/U
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | RG-58C/U | |
| Contact connection | solder/crimp connection | |
| Contact material | brass | |
| Connector | R-SMA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
