100024890 | Telegärtner

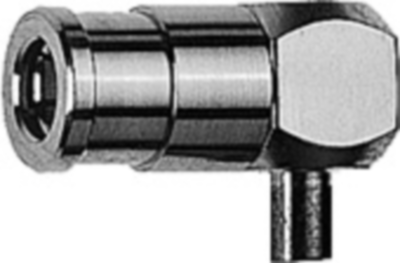

SMB socket 50 Ω, RG-405, Belden 1671A, solder/solder, angled, 100024890
Unit Price (€ / pc.)
7.6874 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01161A0841, Telegärtner
SMB-Angle Jack, G11 (UT-85), solder/solder
This product has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. This connector find applications in all types of electronic equipment.
Technical Data
- Design: Jack
- Connector type: SMB
- Cable group: UT-85
- Connection type: Solder/Solder
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | RG-405, Belden 1671A | |
| Contact connection | solder/solder | |
| Contact material | brass | |
| Connector | SMB |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
