100024917 | Telegärtner
SSMB plug 50 Ω, solder/crimp connection, angled, 100024917
Unit Price (€ / pc.)
7.2709 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Coaxial connector, J01190A0041, Telegärtner

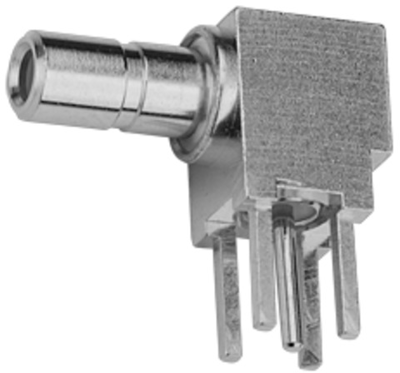

SSMB PCB Angle Plug
This product utilizes a snap coupling and is suitable for applications up to a frequency of 3 GHz. Connector designs are available for flexible cables like RG-316 and RG-178. Because of the small size, this connector has applications in small instruments and communication equipment.
Technical Data
- Design: Plug
- Connector type: SSMB
- Cable group: RG 178, RG 316
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | Stecker | |
| Design | abgewinkelt | |
| Impedance | 50 Ω | |
| Contact connection | Löt-/Crimpanschluss | |
| Contact material | Messing | |
| Connector | SSMB |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
