100025104 | Telegärtner
MMCX socket 50 Ω, angled, 100025104
Unit Price (€ / pc.)
8.7108 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01341A0031, Telegärtner

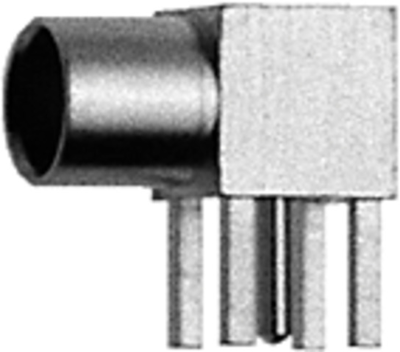

MMCX Angle PCB Receptacle, female
This product is a smaller version of the MCX and also utilizes a snap coupling. It is suitable for use up to 6 GHz. Because of their small size, this connector can be used in the smallest of instruments as well as personal communication equipment.
Technical Data
- Design: Jack
- Connector type: MMCX
- Cable group: other
- Connection type: other
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | other | |
| Contact connection | other | |
| Contact material | Beryllium copper | |
| Connector | MMCX |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
