100025179 | Telegärtner
4.3/10 plug 50 Ω, Belden 16734, EZ 141, Flexiform 402, RG-402/U, UT-141, solder/solder, angled, 100025179
Unit Price (€ / pc.)
16.8147 € *
Available: 0 pcs.
Leadtime: On Request **

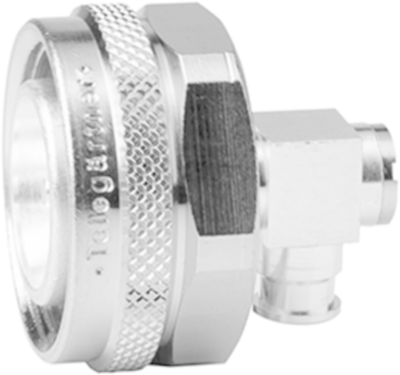

Coaxial connector, J01440A0001, Telegärtner
4.3-10 Angle Plug, solder/solder, G10 (UT-141)
This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.
Technical Data
- Design: Plug
- Connector type: 4.3/10
- Cable group: UT-141
- Connection type: Solder/Solder
- Angled connector: true
- Impedance: 50 Ω
Technical specifications
| Ausführung | Stecker | |
| Bauform | abgewinkelt | |
| Impedanz | 50 Ω | |
| Kabelgruppe | Belden 16734, EZ 141, Flexiform 402, RG-402/U, UT-141 | |
| Kontaktanschluss | Löt/Löt | |
| Kontaktmaterial | Messing | |
| Steckverbinder | 4.3/10 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
