100025186 | Telegärtner
4.3/10 plug 50 Ω, solder connection, straight, 100025186
Unit Price (€ / pc.)
33.7365 € *
Available: 0 pcs.
Leadtime: On Request **

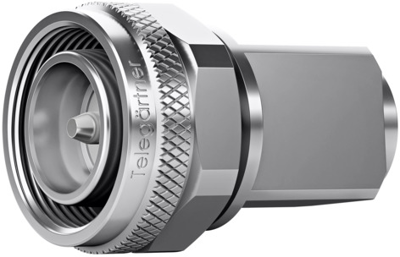

Coaxial connector, J01440A0009, Telegärtner
4.3-10 combination plug
This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.
Technical Data
- Design: Plug
- Connector type: 4.3/10
- Cable group: other
- Connection type: Solder
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | other | |
| Contact connection | solder connection | |
| Contact material | brass | |
| Connector | 4.3/10 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
