100025239 | Telegärtner

4.3/10 plug 50 Ω, 2.7/7.25, solder/crimp connection, angled, 100025239

Order No.: 80F1791
EAN: 4018359472269
MPN:
100025239
J01440A3015
Series: COAX 4.3/10
100025239 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
31.6540 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.6540 €

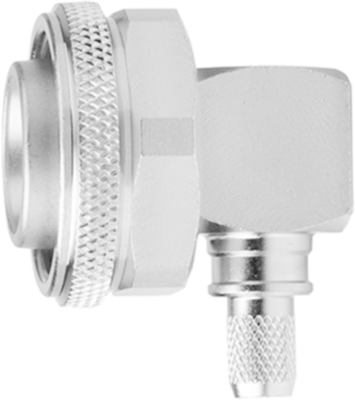

Coaxial connector, J01440A3015, Telegärtner

4.3-10 Angle Plug, solder/crimp, G37 (2.7/7.25), G55 (2.7/7.25 Flex)

This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.

Technical Data

  • Design: Plug
  • Connector type: 4.3/10
  • Cable group: 2.7/7.25
  • Connection type: Solder/Crimp
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Ausführung Stecker
Bauform abgewinkelt
Impedanz 50 Ω
Kabelgruppe 2.7/7.25
Kontaktanschluss Löt-/Crimpanschluss
Kontaktmaterial Messing
Steckverbinder 4.3/10
Logistics
Ursprungsland DE
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
