100025240 | Telegärtner

4.3/10 plug 50 Ω, 1.5/3.8, solder/crimp connection, angled, 100025240

Order No.: 80F1792
EAN: 4018359472276
MPN:
100025240
J01440A3016
Series: COAX 4.3/10
Telegärtner
100025240 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
31.2137 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.2137 €

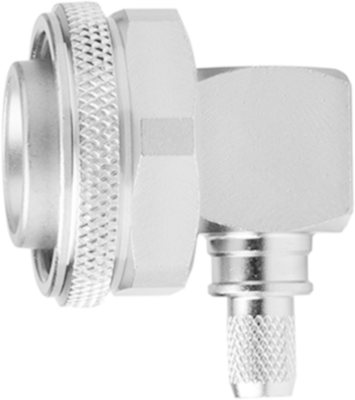

Coaxial connector, J01440A3016, Telegärtner

4.3-10 Angle Plug, Push Pull Type, solder/crimp, G30 (1.5/3.8), G54 (1.5/3.8 Flex)

This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.

Technical Data

  • Design: Plug
  • Connector type: 4.3/10
  • Cable group: 1.5/3.8
  • Connection type: Solder/Crimp
  • Angled connector: true
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design angled
Impedance 50 Ω
Cable Group 1.5/3.8
Contact connection solder/crimp connection
Contact material brass
Connector 4.3/10
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
