100025267 | Telegärtner

4.3/10 socket 50 Ω, 7/8'', clamp/clamp, straight, 100025267

Order No.: 80F1804
EAN: 4018359472290
MPN:
100025267
J01441A0009
Series: COAX 4.3/10
Telegärtner

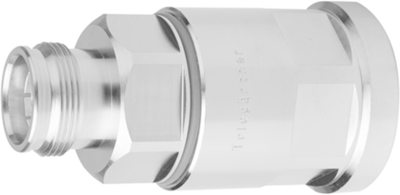

100025267 Telegärtner Coaxial Connectors Image 1
100025267 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
49.5278 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
49.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
49.5278 €

Coaxial connector, J01441A0009, Telegärtner

4.3-10 Straight jack, clamp/clamp, G24 (7/8"), G52 (7/8" Alu), SIMFix CA-Pro

This product has been specially developed to meet the ever increasing demands in mobile radio communication applications. The small size and low weight of this connector do justice to the miniaturization of mobile radio network components. Despite the size this connector guarantees excellent return loss and passive intermodulation performance (PIM) levels.

Technical Data

  • Design: Jack
  • Connector type: F
  • Cable group: RG 59
  • Connection type: Clamp/Clamp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version socket
Design straight
Impedance 50 Ω
Cable Group 7/8''
Contact connection clamp/clamp
Contact material brass
Connector 4.3/10
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
