100025624 | Telegärtner

F plug 50 Ω, RG-59B/U, crimp/crimp, straight, 100025624

Order No.: 80F1840
EAN: 4018359353131
MPN:
100025624
J01600A0009
Series: F
Telegärtner
100025624 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
5.4502 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4502 €

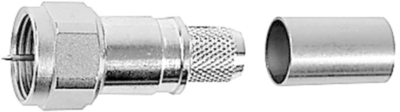

Coaxial connector, J01600A0009, Telegärtner

F Straight compression plug, G2 (RG-59B/U)

This product is designed for use up to 3 GHZ and is ideally suitable for HDTV applications. It has a threaded coupling mechanism. Also is primarily used in the transmission of analogue and digital video signals.

Technical Data

  • Design: Plug
  • Connector type: F
  • Cable group: RG 59B/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design straight
Impedance 50 Ω
Cable Group RG-59B/U
Contact connection crimp/crimp
Contact material brass
Connector F
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
