100025627 | Telegärtner

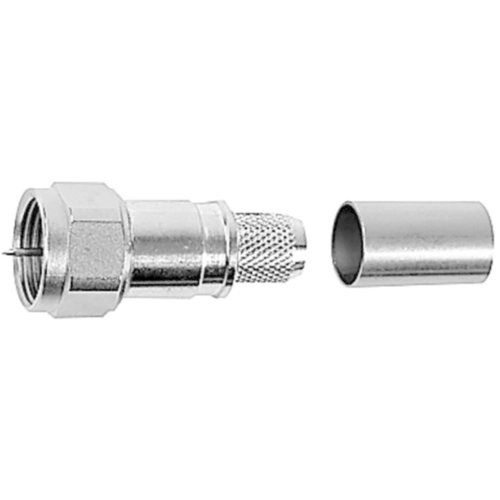

F plug 50 Ω, 1.0/4.6-7.7, crimp/crimp, straight, 100025627
Unit Price (€ / pc.)
5.7834 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial connector, J01600A0013, Telegärtner
F Straight Plug crimp, G51 (1.0/4.6-7.7), G53 (1.2/4.9D)
This product is designed for use up to 3 GHZ and is ideally suitable for HDTV applications. It has a threaded coupling mechanism. Also is primarily used in the transmission of analogue and digital video signals.
Technical Data
- Design: Plug
- Connector type: F
- Cable group: 1.0/4.6-7.7
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | 1.0/4.6-7.7 | |
| Contact connection | crimp/crimp | |
| Contact material | brass | |
| Connector | F |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
