100027542 | Telegärtner

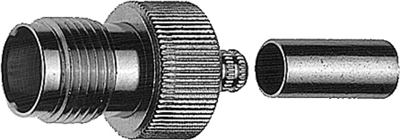

TNC socket 50 Ω, RG-58C/U, crimp connection, straight, 100027542
Unit Price (€ / pc.)
6.3308 € *
Available: 10 pcs.
Leadtime: 1 Week **
Total Price:
6.33 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3308 €
10 pcs.
5.5811 €
100 pcs.
4.8909 €
250 pcs.
4.7005 €
1000 pcs.
4.4030 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01011A2265, Telegärtner
TNC Straight Jack Crimp G1 (RG-58C/U), crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: RG 58C/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-58C/U | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
