100027577 | Telegärtner

Mini UHF plug 50 Ω, RG-58C/U, crimp connection, straight, 100027577

Order No.: 78F1500
EAN: 4018359252298
MPN:
100027577
J01045F0000Z
Series: Mini-UHF
Telegärtner

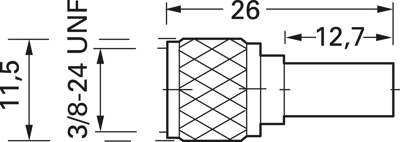

100027577 Telegärtner Coaxial Connectors Image 1

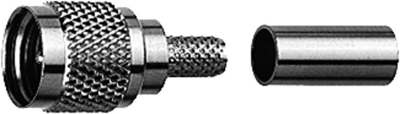

100027577 Telegärtner Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.9032 € *
Available: 309 pcs.
Leadtime: On Request **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.4391 €
100 pcs.
3.0226 €
250 pcs.
2.8917 €
1000 pcs.
2.7013 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coaxial connector, J01045F0000, Telegärtner

Mini UHF Straight Plug Crimp G1 (RG-58C/U) crimp/crimp

This product is a miniaturized version of the UHF connector, but has improved electrical performance. It has threaded coupling and can be used up to a frequency of 2.5 GHz. Applications for the Mini-UHF connector is in the area of mobile radios and mobile communications; especially in vehicles.

Technical Data

  • Design: Plug
  • Connector type: Mini-UHF
  • Cable group: RG 58C/U
  • Connection type: Crimp/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design straight
Impedance 50 Ω
Cable Group RG-58C/U
Contact connection crimp connection
Connector mini UHF
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
