100027665 | Telegärtner

SMB plug 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/crimp connection, straight, 100027665

Order No.: 77F2044
EAN: 4018359258283
MPN:
100027665
J01160A0101Z
Series: SMB
Telegärtner
100027665 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
11.1503 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.15 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1503 €
10 pcs.
10.0079 €
50 pcs.
8.8179 €
100 pcs.
7.4970 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coaxial connector, J01160A0101, Telegärtner

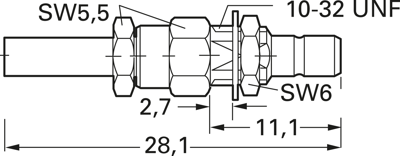

SMB-Bulkhead Plug Crimp G7 (RG-316/U) solder/crimp

This product has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. This connector find applications in all types of electronic equipment.

Technical Data

  • Design: Plug
  • Connector type: SMB
  • Cable group: RG 316/U
  • Connection type: Solder/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Version plug
Design straight
Impedance 50 Ω
Cable Group RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
Contact connection solder/crimp connection
Contact material brass
Connector SMB
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
