100006999 | Telegärtner

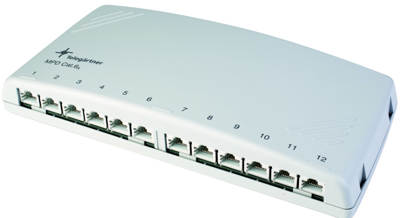

Patch panel, 12 x RJ45, (W x H x D) 255 x 37 x 118 mm, light gray, 100006999
Unit Price (€ / pc.)
90.3924 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting Module, Patch Distributor, J02022A0054, Telegärtner
Mini Distributor MPD12-H K Cat.6A
Features
- 360 ° shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid
- Shielding cover made of stainless steel
- Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B
- Cat.6A- & Cat.6A types with overbending protection: suitable for 6- (RJ11/12) and 8-pin connectors (RJ45), can be used in the modular jack without additional installation kits
- No special tooling required for mounting of cover (shielded type)

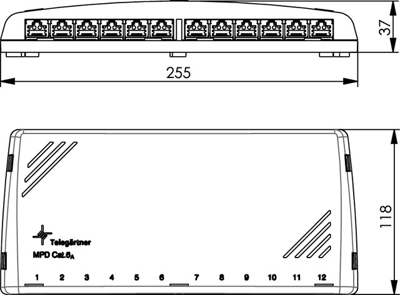

Technical Data
- Version: Patch panel
- Colour: light-gray
- Height: 37 mm
- Width: 255 mm
- Depth: 118 mm
Technical specifications
| Connection | 12 x RJ45 | |
| Version | patch panel | |
| Width | 255 mm | |
| Colour | light gray | |
| Height | 37 mm | |
| Depth | 118 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
