100007001 | Telegärtner
Patch panel, 129 mm, J02022A0056
Order No.: 80F1857
EAN: 4018359368128
MPN:
100007001
J02022A0056
Unit Price (€ / pc.)
160.4834 € *
Available: 0 pcs.
Leadtime: On Request **

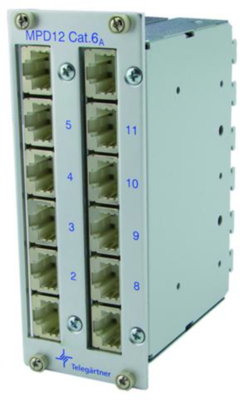

Connecting Module, Patch Distributor, J02022A0056, Telegärtner
Mini Distributor MPD12-H K Cat.6A - 3 HU / 10 PU
Features
- 360 ° shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid
- Shielding cover made of stainless steel
- Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B
- Cat.6A- & Cat.6A types with overbending protection: suitable for 6- (RJ11/12) and 8-pin connectors (RJ45), can be used in the modular jack without additional installation kits
- 19" rack-mount design size 3 HU/7 PU with 6xRJ45 and 3 HU/10 PU with 12xRJ45 available, front plate anodized aluminium
- No special tooling required for mounting of cover (shielded type)
Technical Data
- Version: Patch panel
- Height: 50.4 mm
- Width: 129 mm
- Depth: 97.5 mm
Technical specifications
| Connection | 12 x RJ45 | |
| Version | patch panel | |
| Width | 129 mm | |
| Height | 50.4 mm | |
| Depth | 97.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
