100007013 | Telegärtner

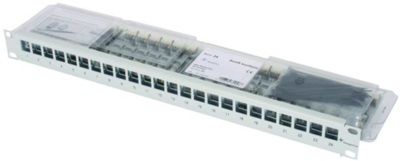

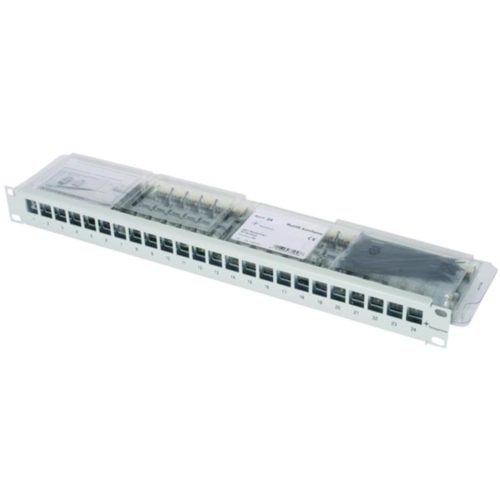

19 inch module carrier, 24 x RJ45, (W x H x D) 482.6 x 44 x 115 mm, light gray, 100007013
Order No.: 80F1867
EAN: 4018359402266
MPN:
100007013
J02023A0040
Unit Price (€ / pc.)
267.4763 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting Module, Patch Distributor, J02023A0040, Telegärtner
19" Frontplate 1 HU incl. 24xAMJ-S Module Cat.6A T568B
Features
- Cat.6A acc. to IEC 60603-7-51
- 10 Gigabit-Ethernet compliant (IEEE 802.3an)
- Suitable for PoE+ acc. to IEEE 802.3at
- Overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
- Universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
- AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection
Technical Data
- Version: 19" Module carrier
- Connection: 24x AMJ-S
- Colour: light-gray
- Height: 44 mm
- Width: 482.6 mm
- Depth: 115 mm
Technical specifications
| Connection | 24 x RJ45 | |
| Version | 19 inch module carrier | |
| Width | 482.6 mm | |
| Colour | light gray | |
| Height | 44 mm | |
| Depth | 115 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
