100007024 | Telegärtner

Connecting Module, Patch Distributor, J02023B0018, Telegärtner

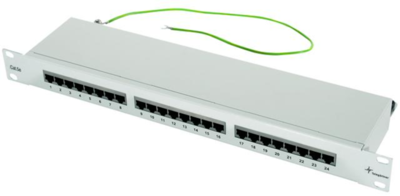

Patch Panel MPP24-H Cat.5e

Features

• 19"/10" rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB
• 360 ° shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid
• Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B
• Cat.6A, Class EA 500 & Cat.6A types with overbending protection: >750 mating cylces with RJ45/RJ11/RJ12 plugs
• Printed circuit board is mounted horizontally
• No special tooling required for mounting of cover (shielded type)

Technical Data

• Version: Patch panel
• Connection: 24x RJ45
• Colour: light-gray
• Height: 44 mm
• Width: 482.6 mm
• Depth: 137 mm
