100022394 | Telegärtner

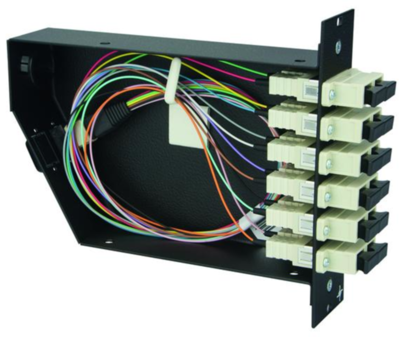

FO patch panel, E9/125 OS2, 6 x SC duplex, vertical, 1 row, (W x H x D) 150 x 128 x 35.4 mm, black, 100022394
Order No.: 80F0774
EAN: 4018359380830
MPN:
100022394
H02050F4041
Unit Price (€ / pc.)
373.0174 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Connecting Module, Patch Distributor, H02050F4041, Telegärtner
MPO/MTP® APC FanOut module OS2, 6x SC duplex adaptor, 12x SC/APC FanOut
The pre-term MPO/MTP® cabling system is the future-proof and economical solution for fiber optic networks from 10 Mbps to 100 Gbps according to EN 50173, EN50174, ISO/IEC 24764:2010 and ANSI/TIA-568-C.0
Features
- Connectivity method A, type B and C also available
- E9/125 OS2
Technical Data
- Version: FO Patch panel
- Connection: 6x SC Duplex
- Colour: black
- With front panel: Yes
- With housing: Yes
- With pigtails: No
Technical specifications
| Anordnung | senkrecht, 1-reihig | |
| Anschluss | 6 x SC Duplex | |
| Ausführung | LWL Rangierverteiler | |
| Breite | 150 mm | |
| Farbe | schwarz | |
| Höhe | 128 mm | |
| Pigtails | E9/125 OS2 | |
| Tiefe | 35.4 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85367000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
