100022410 | Telegärtner

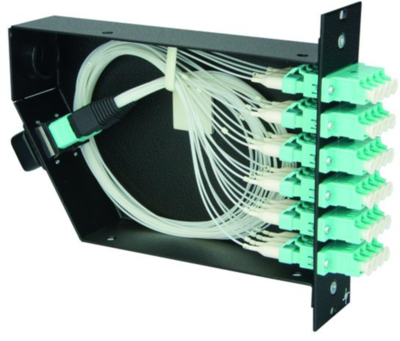

FO patch panel, E9/125 OS2, 6 x LC Quad, (W x H x D) 150 x 128 x 35.4 mm, 100022410
Order No.: 80F0782
EAN: 4018359380991
MPN:
100022410
H02050F4241
Unit Price (€ / pc.)
784.1862 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Connecting Module, Patch Distributor, H02050F4241, Telegärtner
MPO/MTP® APC FanOut module OS2, 6x LC Quad adaptor, 24x LC/APC FanOut
The pre-term MPO/MTP® cabling system is the future-proof and economical solution for fiber optic networks from 10 Mbps to 100 Gbps according to EN 50173, EN50174, ISO/IEC 24764:2010 and ANSI/TIA-568-C.0
Features
- Connectivity method A, type B and C also available
- For maximal 3 FanOut modules 3HU/7PU
Technical Data
- Version: FO Patch panel
- Connection: 6x LC Quad
- With front panel: Yes
- With housing: Yes
- With pigtails: Yes
Technical specifications
| Connection | 6 x LC Quad | |
| Version | FO patch panel | |
| Width | 150 mm | |
| Height | 128 mm | |
| Pigtails | E9/125 OS2 | |
| Depth | 35.4 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
