100007289 | Telegärtner

SC plug, J08084A0000, Telegärtner

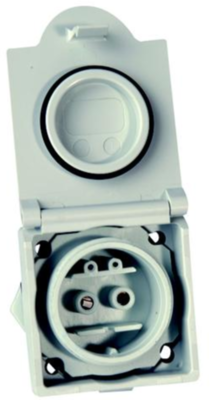

Flange coupling 2xSC IP67 for Multimode

More information about J08084A0000

• UV resistant Plastic, fire protection class UL94 V0. Color coding: Multimode = Beige, Singlemode = Blue. Protection class IP67 when not plugged in due to integrated protective flap. Coupling insert in 4 x 90° steps mountable. On the inside can be 2x SC-simplex or 1x SC-RJ (to IEC 61754-4) be put. Screw mounting with MOther M25x1,5 for wall thickness up to 5 mm, alternative with 4x M3-screw for wall thicknesses greater than 5 mm. Installation dimension ø25 mm with anti-twist protection. Dimensions: B = 32 mm, H = 42,6 mm, T = 14 mm.
• Short designation: Flange coupling 2xSC IP67 for Multimode

Technical features

• Mounting type: Flange
• Color: Beige
• Suitable for fiber type: Multimode
• Connector type Connection 1: Other
• Connector type Connection 2: Other
• Sleeve material: Ceramics
• Housing material: Plastic
