100007566 | Telegärtner

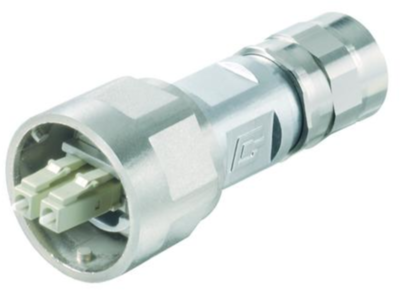

LC-plug, GOF/POF, singlemode, ceramic, silver, 100007566
Unit Price (€ / pc.)
88.5479 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
J88073A0006 from Telegärtner at Bürklin electronik
Find detailed information about the product on our site J88073A0006 from Telegärtner. The manufacturer description for this product is: STX V1 LC-D Plugset SM MetalMore information about J88073A0006
- Variant 1 to IEC 61076-3-106. Protection class IP67. Optional with RJ45 Cat.6A(IEC), Cat.6 Class EA(IEC), USB or fiber optic insert available. Rugged zinc die-cast or plastic housing. Accommodates cables with diameter 5-10 mm. Pre-assembled connectors and kit items for ease of installation. Easy mounting of flanges with central screw connection or 4 screws. Available with bend protection spiral to maintain bending radii for FO and Cu cables. Catch cord made of NBR on the protective cap. Field for marking labels.
- Designation: STX V1 FO plug set
- Plug-Bauform: LC Duplex
- Housing: Metal
- Fiber type: Singlemode
- Notes: Without kink protection spiral
Technical features
- Connection type: Glue
- APC version: False
- Execution: Plug
- Color: Other
- Suitable for fiber type: Singlemode
- Connector type: Other
- Ferrule material: Ceramics
Technical specifications
| Connection | glue connection | |
| Version | LC-plug | |
| Colour | silver | |
| Chamfer type | singlemode | |
| Ferrule | ceramic | |
| Category | GOF/POF | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
