100007622 | Telegärtner

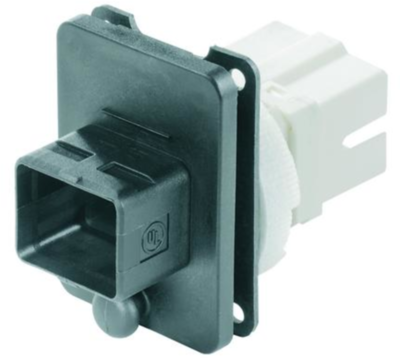

SC plug, GOF/POF, singlemode, ceramic, silver, 100007622
Unit Price (€ / pc.)
40.9479 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
J88084A0001 from Telegärtner at Bürklin electronik
Find detailed information about the product on our site J88084A0001 from Telegärtner. The manufacturer description for this product is: STX V4 Flangeset 2SC-RJ/2SC-Coupling SMMore information about J88084A0001
- With kink predection spiral Available for compliance with bending radii for fiber optics and Cu cable. Catch line from NBR on the pRedective cap. Feld for Marking signs. Variant 4 to IEC 61076-3-106. PRedection class IP67. Optional with RJ45 Cat.6A(IEC), Cat.6 Class EA(IEC), USB or fiber optic insert available. Rugged PA housing. Recording from cables with diameter 5 - 10 mm. Pre-assembled plug and set article for high ease of assembly. Easy mounting of the flangee with Central screw fitting or 4 Screw.
- Designation: STX V4 Flangeset
- Fiber type: Singlemode
- Insert: 2SC/SC-RJ-Coupling
- Installation dimension: Z122, Z123, Z129
Technical features
- Mounting type: Flange
- Color: Aluminium
- Suitable for fiber type: Singlemode
- Connector type Connection 1: SC-RJ
- Connector type Connection 2: SC
- Housing material: Metal
Technical specifications
| Connection | screw connection | |
| Version | SC plug | |
| Colour | silver | |
| Chamfer type | singlemode | |
| Ferrule | ceramic | |
| Category | GOF/POF | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
