100007387 | Telegärtner

Plug, RJ45, 8 pole, 8P8C, Cat 6A, IDC connection, cable assembly, 100007387

Order No.: 73F1806
EAN: 4018359414177
MPN:
100007387
J60026A0000

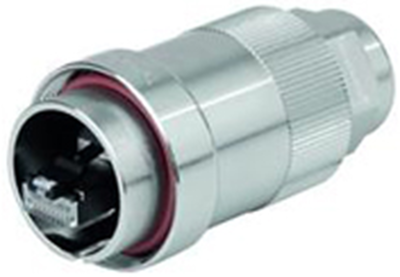

100007387 Telegärtner Modular Connectors Image 1
100007387 Telegärtner Modular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
65.9974 € *
Available: 24 pcs.
Leadtime: On Request **
Total Price:
66.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
65.9974 €

Modular connector, RJ connector, J60026A0000, Telegärtner

TOC Steckerset IP68 MFP8 T568B Cat.6A, brass type

TOC stands for Telecommunications Outdoor connector and offers cabling professionals the reliability and flexibility they need for toughest applications. The handy, easy to install TOC connector are used for data- and telecommunications in mobile radio, process-, utility- and traffic automation, or security applications but also in the harsh environment of machine and plant engineering. The TOC series is available in nickel-plated brass for RJ45 Cat.6A, FO LC Duplex and MPO/MTP® connector. Compliance with the specifications of protection class IP68 and due to its excellent material properties, the TOC series can be installed even in harsh conditions within a temperature range from -40°C to 85°C.

Features

  • suitable for PoE+ acc. to IEEE 802.3at
  • suitable for 10 Gigabit Ethernet acc. to IEEE 802.3an
  • protection class IP68 acc. to IEC 60529
  • cable outer diameter: 4 - 9.5 mm
  • RJ45 plug MFP8 Cat.6A acc. to IEC 60603-7-51 (500 MHz)
  • Cu-conductor: solid 0.41 - 0.64 mm (AWG 24/1-AWG 22/1); stranded 0.46 - 0.76 mm (AWG 27/7-AWG 22/7)

Technical Data

  • Design: Plug
  • Suitable for round cable: No
  • Suitable for flat cable: No
  • Suitable for solid conductors: Yes
  • Colour: silver
Technical specifications
Anschluss Schneidklemmanschluss
Ausführung Stecker
Kategorie Cat 6A
Montage Kabelmontage
Polbild 8P8C
Polzahl 8-polig
RJ-Variante RJ45
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
